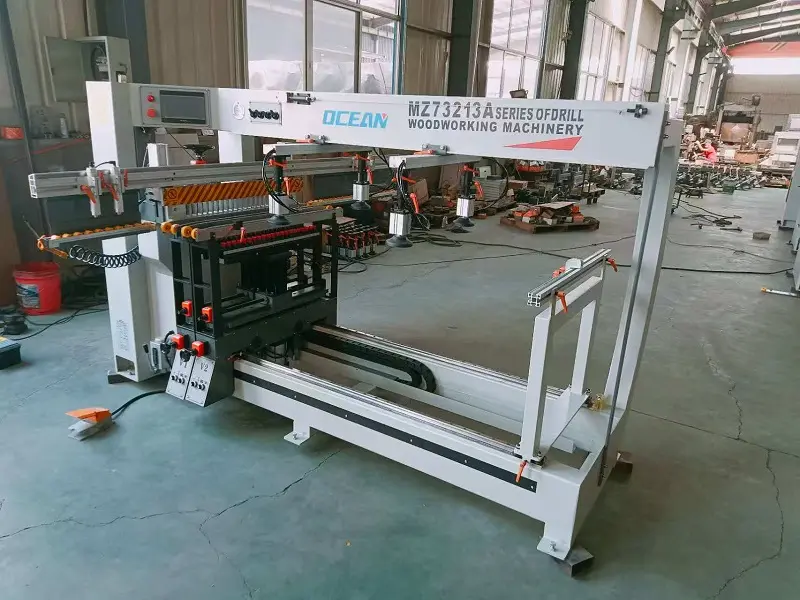

MZ73213A Three-Row Drilling Machine
The three-row drilling machine is suitable for drilling on MDF, particleboard, plywood, PVC boards, acrylic (plexiglass), and solid wood panels.
It is an ideal solution for manufacturing furniture and wood products, helping you improve precision, reduce labor and material costs, and enhance overall production efficiency.
Our Service
1) OEM and ODM 2) Logo, Packaging, Color Customized
3) Technical Support 4) Provide Promotion Pictures
Features:
-
Equipped with a branded touch screen and industrial-grade PLC control system, the machine offers strong performance and a low failure rate.
-
Supports a wide drilling range; all drill bits use quick-connect fittings for convenient and fast replacement.
-
Drilling depth and spacing can be precisely controlled using a photoelectric sensor switch, ensuring fast and accurate positioning.
-
Uses imported original-brand drill heads, motors, linear guide rails, and sliders for excellent durability and reliability.
-
All machine components are made from high-quality steel, heat-treated through high-temperature annealing to eliminate internal stress and ensure long-term deformation resistance.
Technical Parameters:
| Item | Specification |
|---|---|
| Max. Drilling Diameter | 35 mm |
| Max. Drilling Depth | 60 mm |
| Drilling Distance Range | 140 – 1700 mm |
| Number of Spindles | 21 spindles × 3 rows (total 63) |
| Spindle Speed | 2800 rpm |
| Motor Power | 1.5 kW × 3 (total 4.5 kW) |
| Air Pressure Requirement | 0.6 – 0.8 MPa |
| Machine Dimensions | 2600 × 2500 × 1600 mm |
| Packing Dimensions | 2600 × 1100 × 1500 mm |
| Net / Gross Weight | 700 kg / 750 kg |

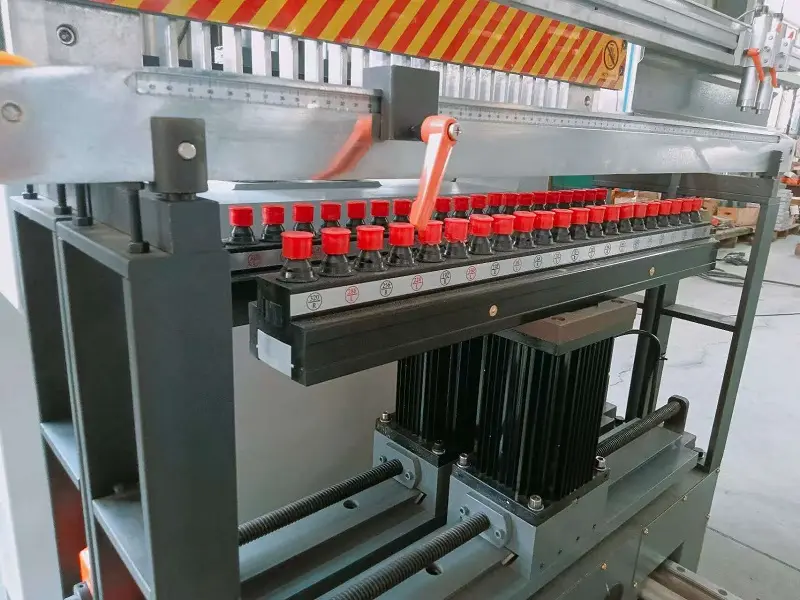

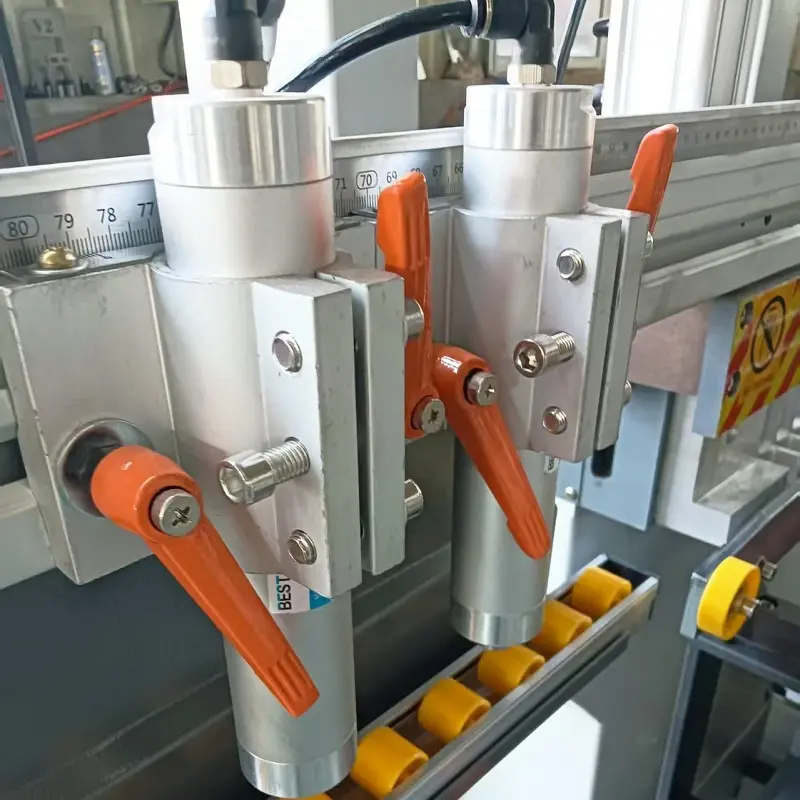

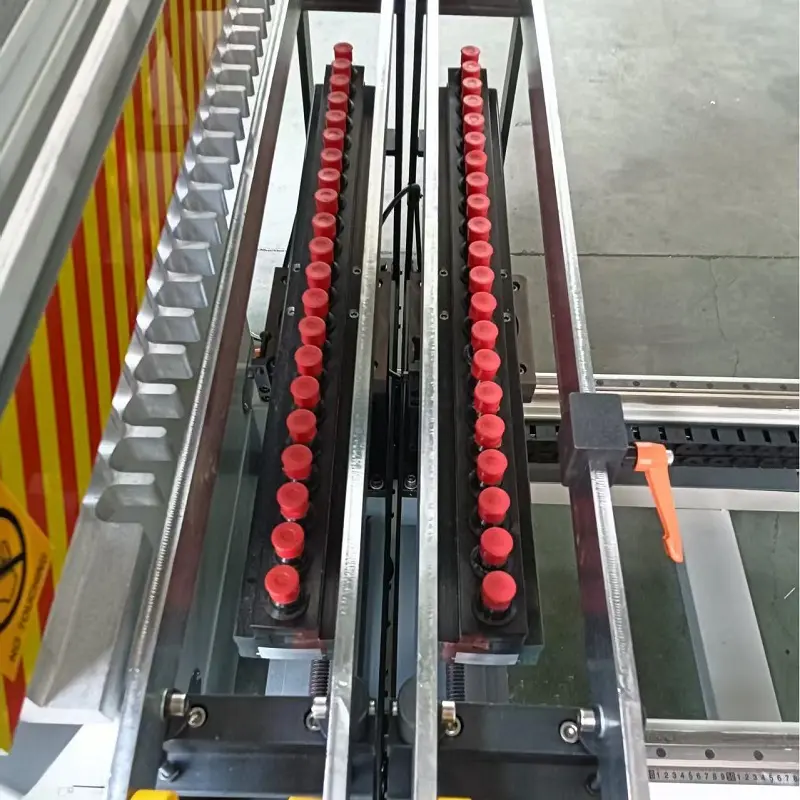

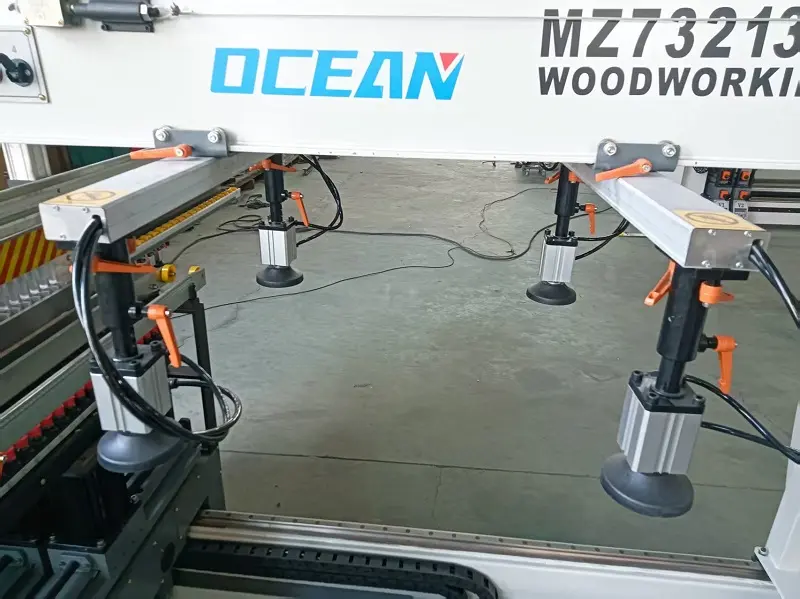

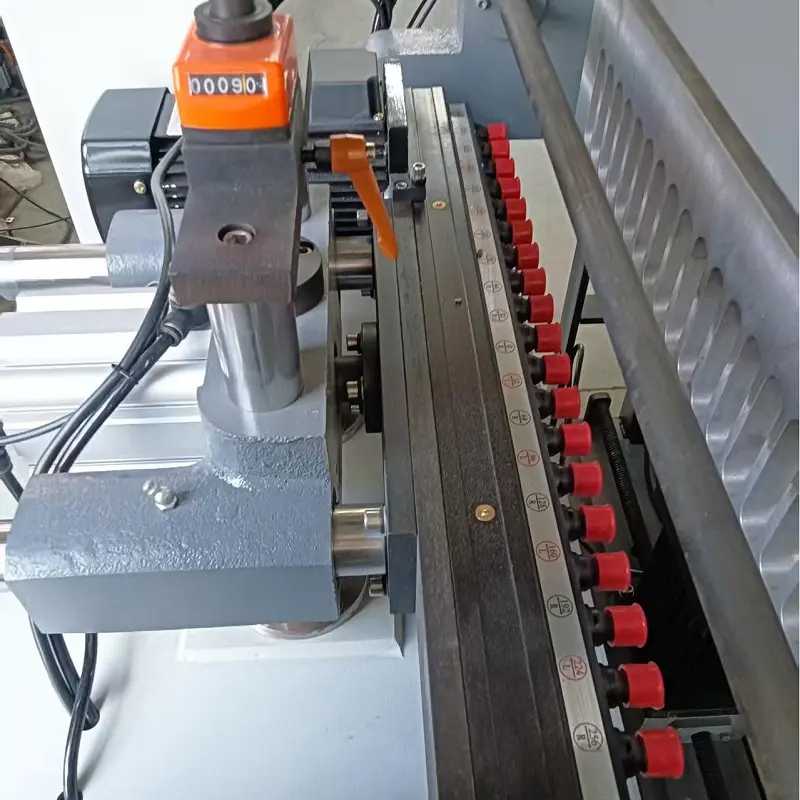

Photos:
FAQ
How should I pay for my order?
A: You’ll need to pay a 30% deposit to start production. Once the machine is finished, we’ll send you pictures or videos. After you pay the remaining balance, we’ll ship the machine.What is the delivery time?
A: Standard machines usually take 10-15 days. Customized machines may take 15-30 days depending on the specifications.How are the products packaged?
A: We typically use wooden crates or plastic film for packaging. Wooden crates are for consolidated shipping, while plastic film is used for full-container shipments.Do you offer warranty services?
A: Yes, we offer a 12-month warranty on the machine. If any issues arise during normal use, we’ll provide spare parts free of charge. Plus, you’ll receive lifetime technical support and service.Do you provide installation services?
A: Yes, we offer installation assistance. For most machines, we’ll guide you through the process via online meetings or detailed video instructions. For more complex machines that require on-site setup, our technical team can visit your factory to install and ensure everything runs smoothly. Please note, travel expenses for our technicians are your responsibility.
