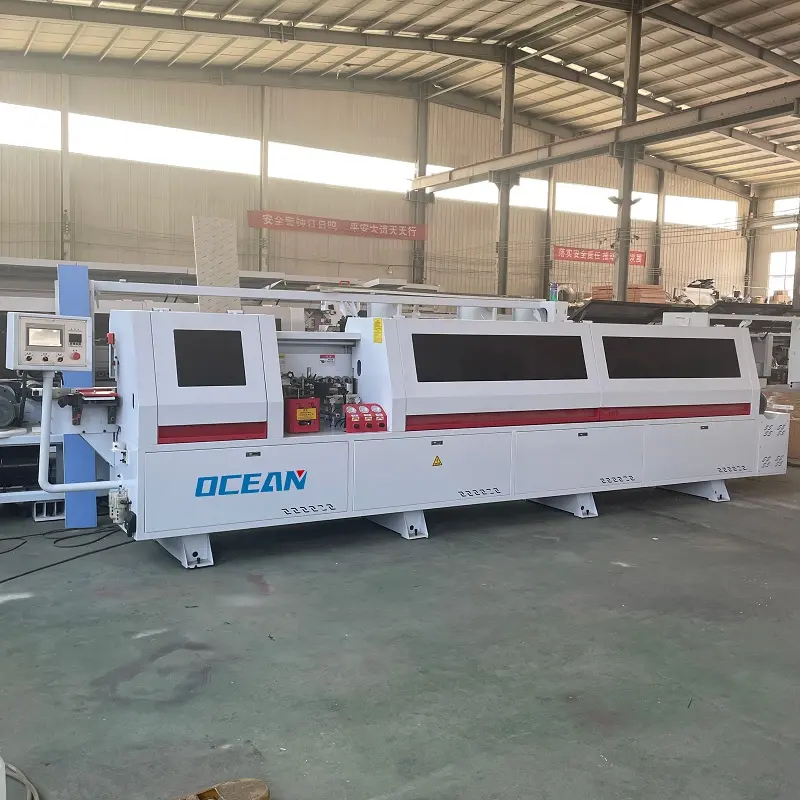

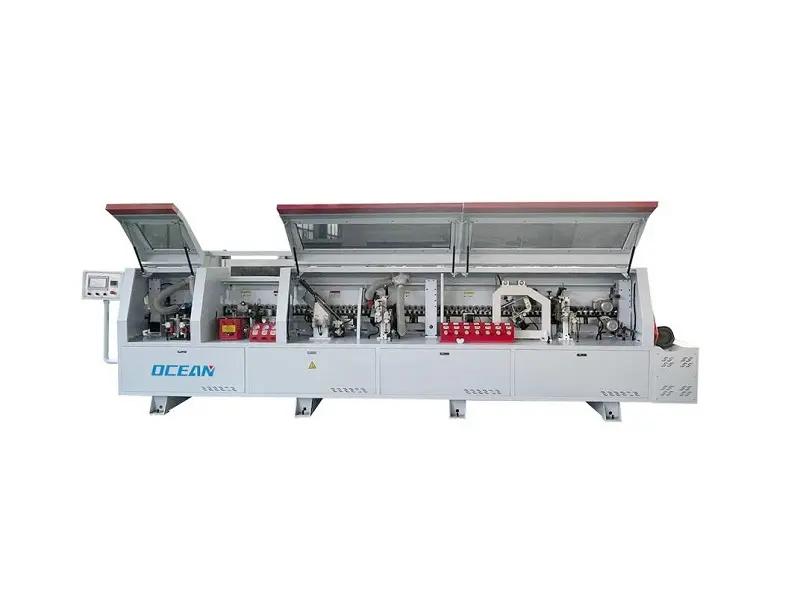

EB-368A Fully Automatic Edge Banding Machine with Profile Tracking
As a cost-effective fully automatic edge banding machine, it can complete pre – milling,gluing, banding, edge cutting, trimming, tracking, scraping and polishing functions automatically. You can use it for banding various wooden boards, such as density boards, fiber boards, particle boards, solid wood panels, etc.
Our Service
1) OEM and ODM 2) Logo, Packaging, Color Customized
3) Technical Support 4) Provide Promotion Pictures
Technical Parameter：
| Specification | Value |
|---|---|
| Dimension | 6680×900×1550mm |
| Weight | 2200kg |
| Working Pressure | 0.6mpa |
| Feeding Speed | 12–24m/min |
| Sheet Thickness | 10–60mm |
| Sheet Length | ≥80mm |
| Sheet Width | ≥40mm |
| Edge Band Thickness | 0.4–3mm |
| Edge Band Width | 12–60mm |
| Total Power | 13.6kw |
Detail Description ：

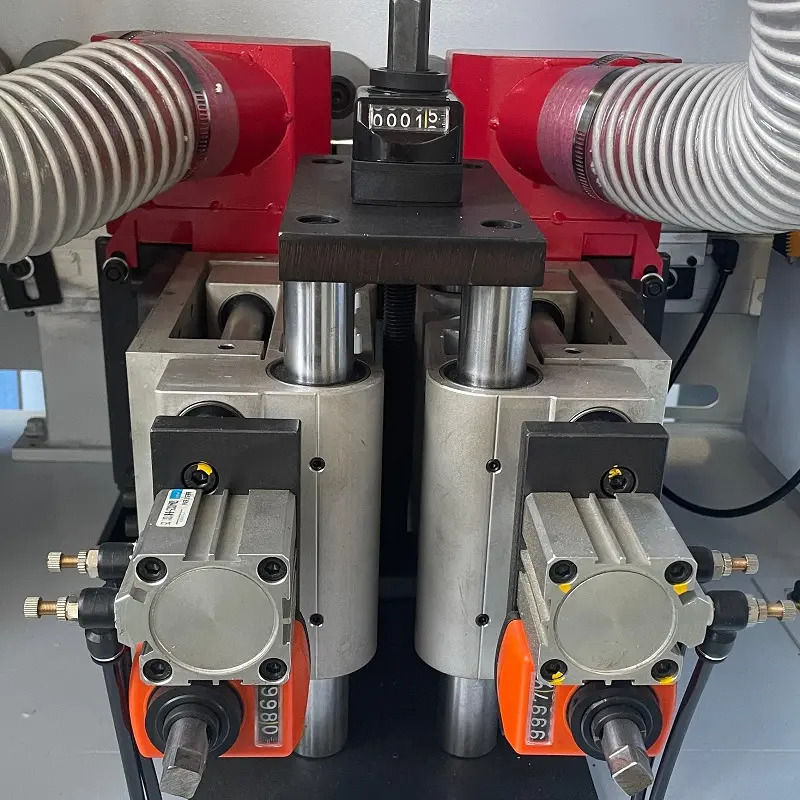

1.Pre-milling unit:It trims the panel edge before gluing to ensure smooth, clean surfaces for better bonding
and a flawless finish.

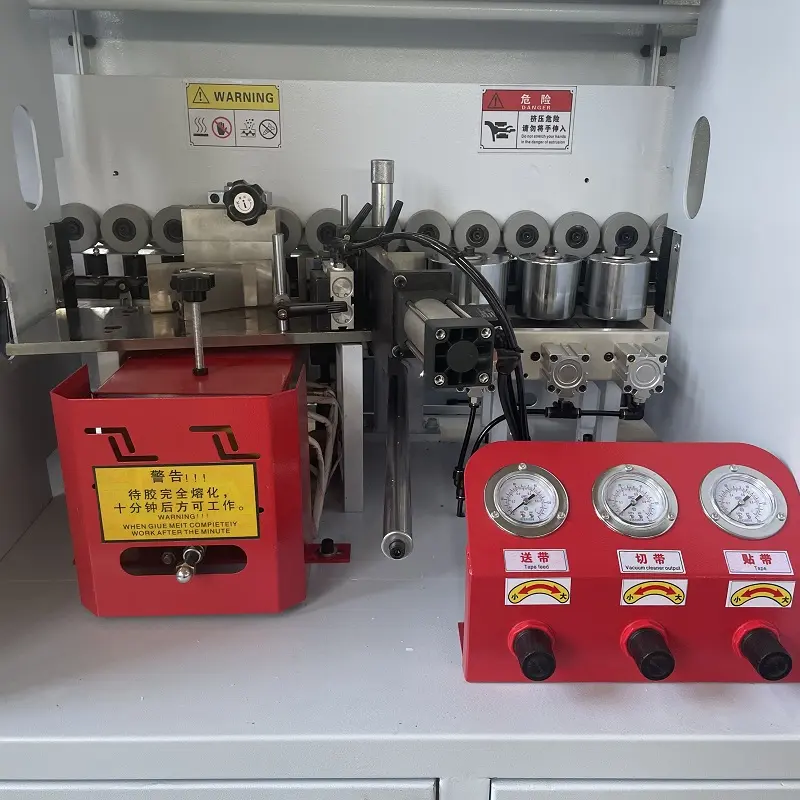

2.Gluing device:The glue pot is heated to melt the glue, and the glue is evenly spread on the board and the
edge band through a special conveying structure. Press the edge band and the board tightly by the
pressing wheel.
3.Front and back flush device :Through the structure of automatic profiling and high-frequency high-speed
motor, the cut surface is smooth.

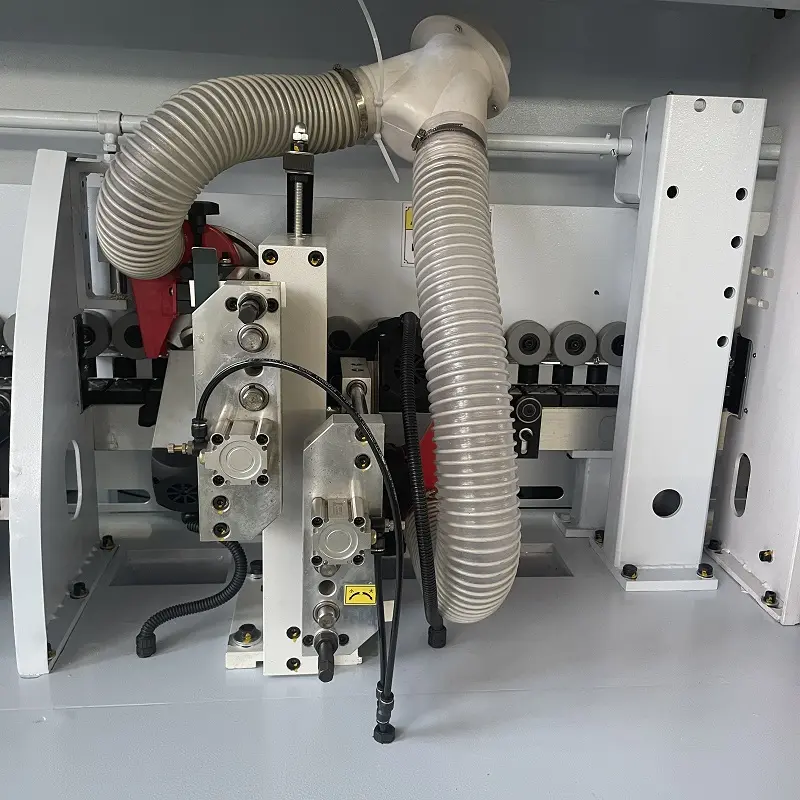

4.Fine trimming unit：Fine trimming ensures the edge banding is flush with the panel surface.

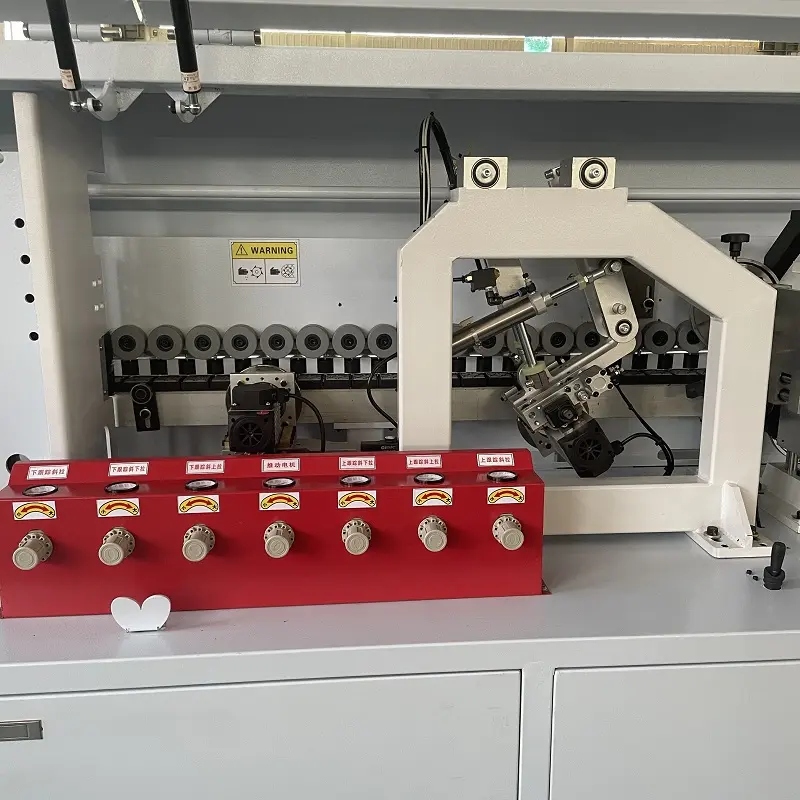

5：Profile tracking unit：Profile tracing ensures consistent edge processing on irregular or rounded workpieces.

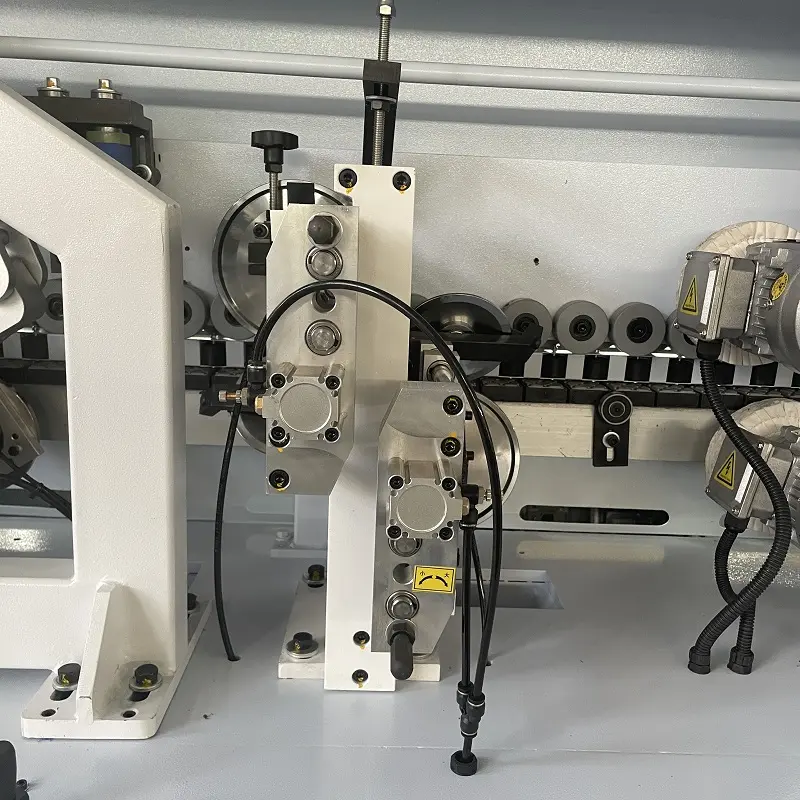

6.Scraping edge device：It removes ripple marks from trimming and fillet cutting, ensuring smoother and
neater top and bottom surfaces of the board.
7.Polishing device:The cotton polishing wheel polishes and cleans the processed plates, removes the excess
amount of glue between the edge banding tape and the plate, and makes the edge banding end surface
more natural and smooth.
FAQ
How should I pay for my order?
A: You’ll need to pay a 30% deposit to start production. Once the machine is finished, we’ll send you pictures or videos. After you pay the remaining balance, we’ll ship the machine.What is the delivery time?
A: Standard machines usually take 10-15 days. Customized machines may take 15-30 days depending on the specifications.How are the products packaged?
A: We typically use wooden crates or plastic film for packaging. Wooden crates are for consolidated shipping, while plastic film is used for full-container shipments.Do you offer warranty services?
A: Yes, we offer a 12-month warranty on the machine. If any issues arise during normal use, we’ll provide spare parts free of charge. Plus, you’ll receive lifetime technical support and service.Do you provide installation services?
A: Yes, we offer installation assistance. For most machines, we’ll guide you through the process via online meetings or detailed video instructions. For more complex machines that require on-site setup, our technical team can visit your factory to install and ensure everything runs smoothly. Please note, travel expenses for our technicians are your responsibility.
