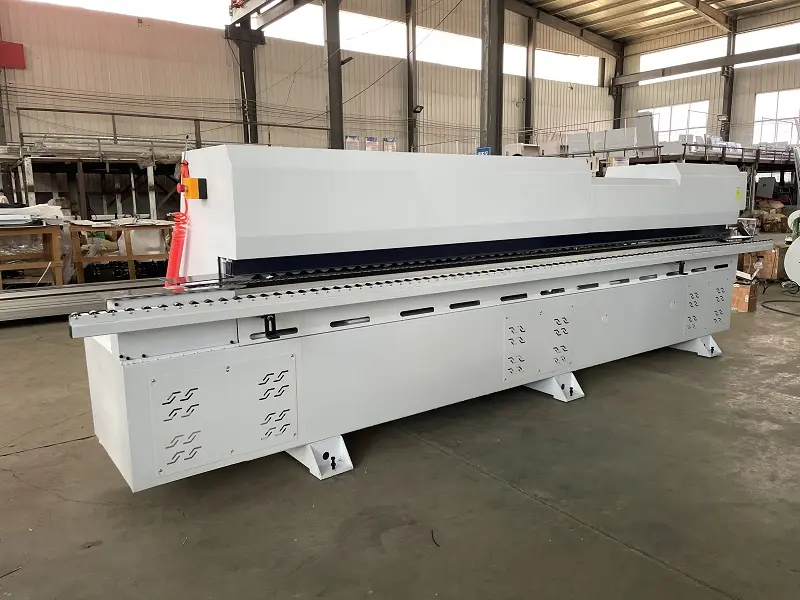

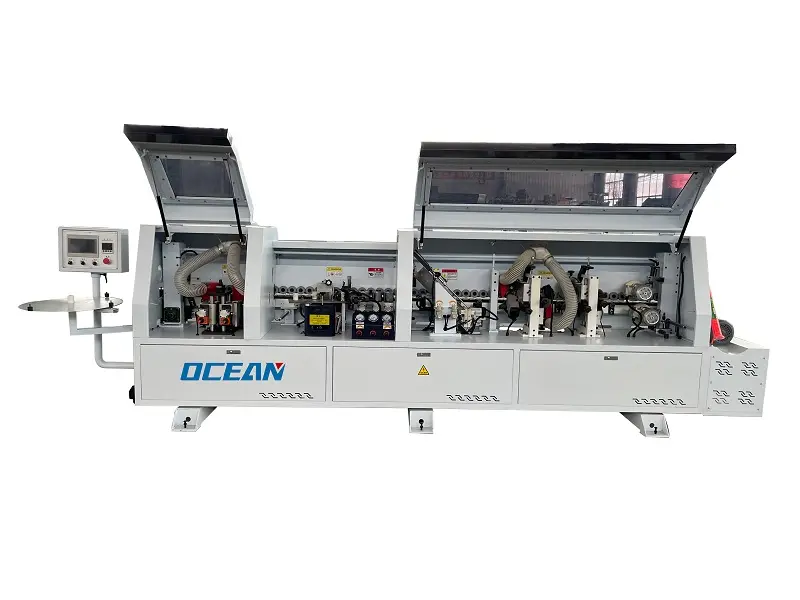

EB-368B Economical Single-trim Edge Banding Machine

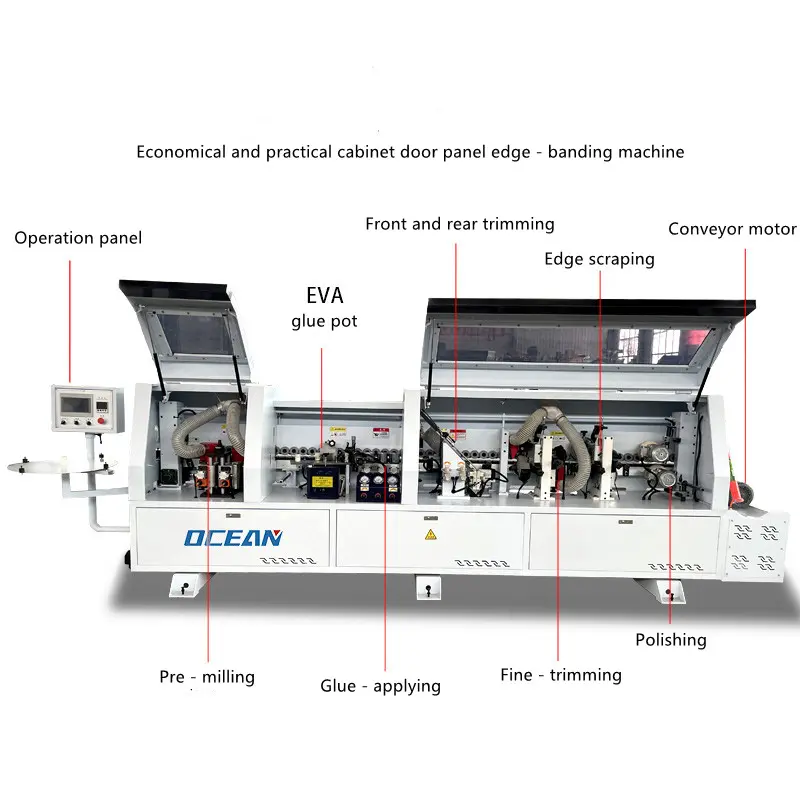

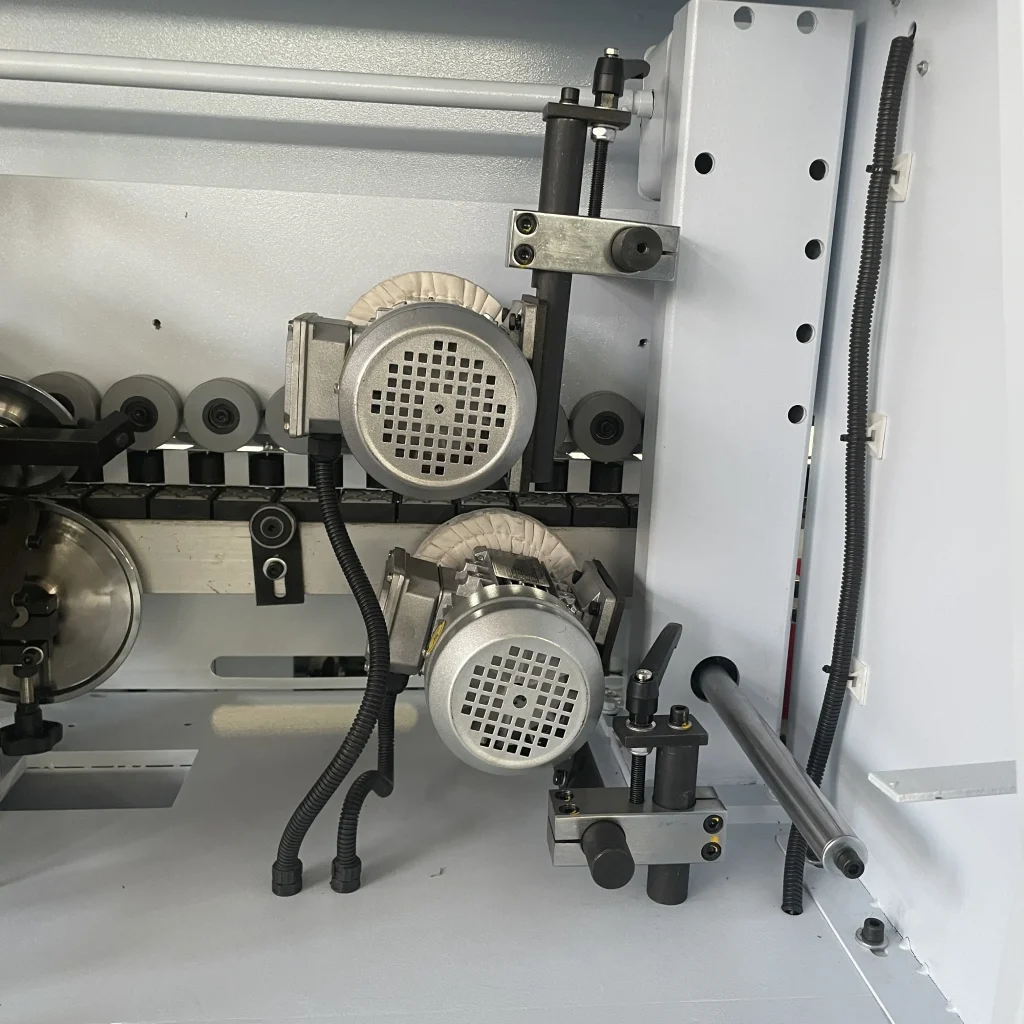

The functions of automatic single-trim edge banding machine: Pre-milling, Lower glue pot, Endcutting, Fine trimming, Corner Rounding, Scraping and Polishing.
★Pneumatic knife adjustment, back plate grooving, door set line grooving, three speed adjustment, aluminum alloy beam and other functions are optional according to demand.
★ The fuselage is made of 14mm international high strength steel plate with exclusive welding process frame type fuselage
structure.
Our Service
1) OEM and ODM 2) Logo, Packaging, Color Customized
3) Technical Support 4) Provide Promotion Pictures
Technical Parameters:
| Specification | Value |
|---|---|
| Dimension | 5480×900×1550mm |
| Weight | 1500kg |
| Working Pressure | 0.6mpa |
| Feeding Speed | 12–24m/min |
| Sheet Thickness | 10–60mm |
| Sheet Length | ≥150mm |
| Sheet Width | ≥80mm |
| Edge Band Thickness | 0.4–3mm |
| Edge Band Width | 12–60mm |
| Total Power | 12.6kw |
Details:
FAQ
How should I pay for my order?
A: You’ll need to pay a 30% deposit to start production. Once the machine is finished, we’ll send you pictures or videos. After you pay the remaining balance, we’ll ship the machine.What is the delivery time?
A: Standard machines usually take 10-15 days. Customized machines may take 15-30 days depending on the specifications.How are the products packaged?
A: We typically use wooden crates or plastic film for packaging. Wooden crates are for consolidated shipping, while plastic film is used for full-container shipments.Do you offer warranty services?
A: Yes, we offer a 12-month warranty on the machine. If any issues arise during normal use, we’ll provide spare parts free of charge. Plus, you’ll receive lifetime technical support and service.Do you provide installation services?
A: Yes, we offer installation assistance. For most machines, we’ll guide you through the process via online meetings or detailed video instructions. For more complex machines that require on-site setup, our technical team can visit your factory to install and ensure everything runs smoothly. Please note, travel expenses for our technicians are your responsibility.
