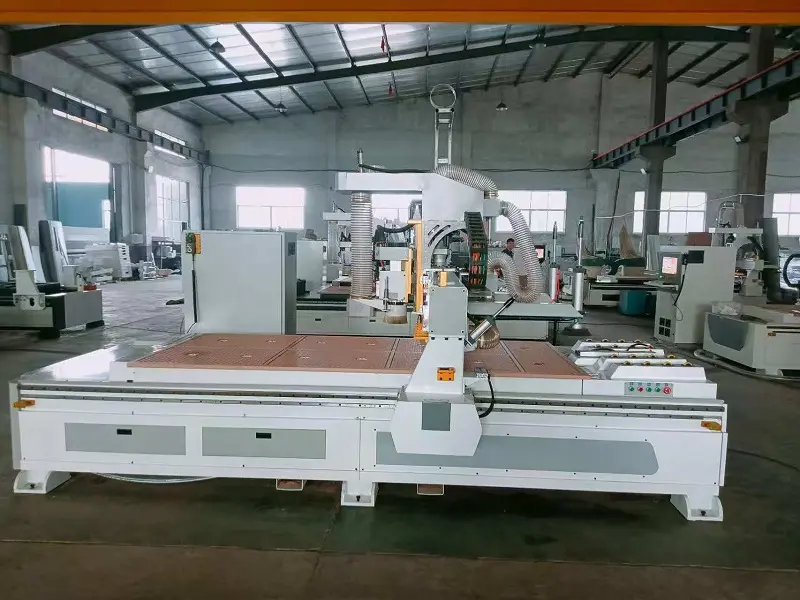

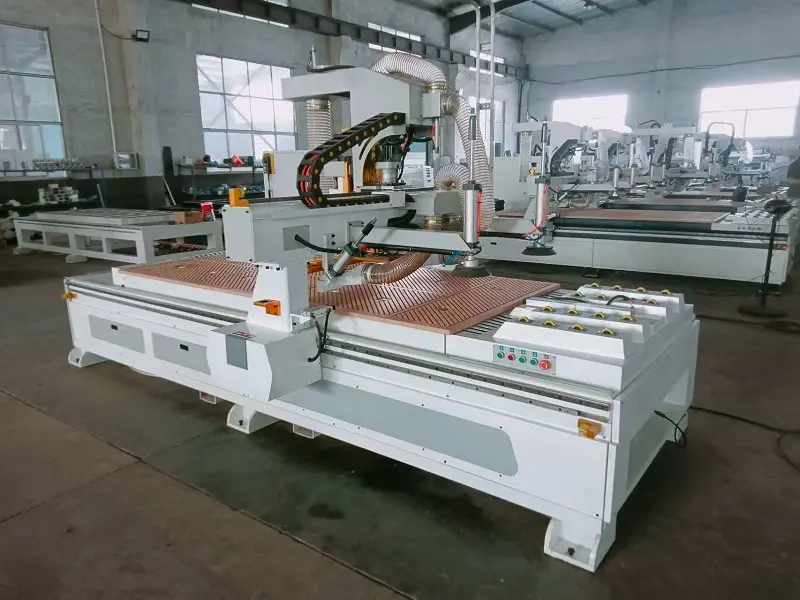

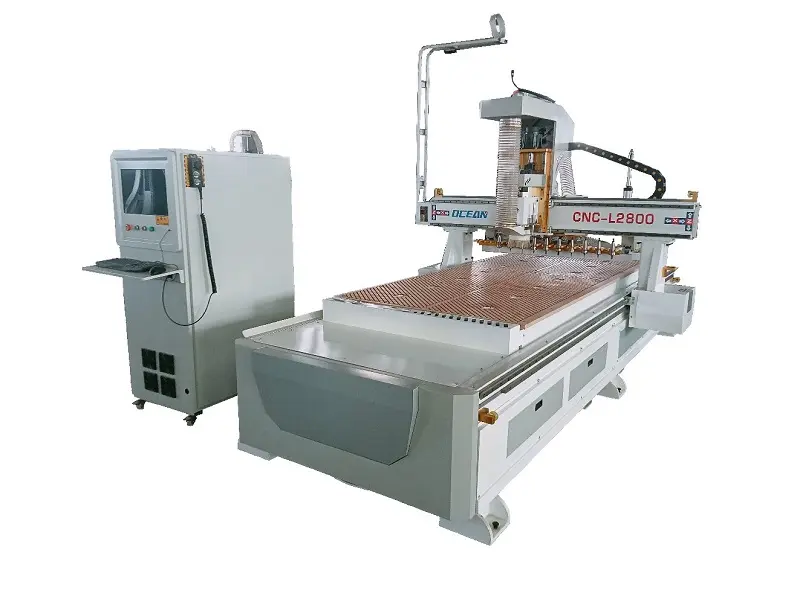

CNC L2800 Nesting Machine with Automatic Loading System
12-Tool CNC Nesting Machine – Smart, Efficient, and Precise

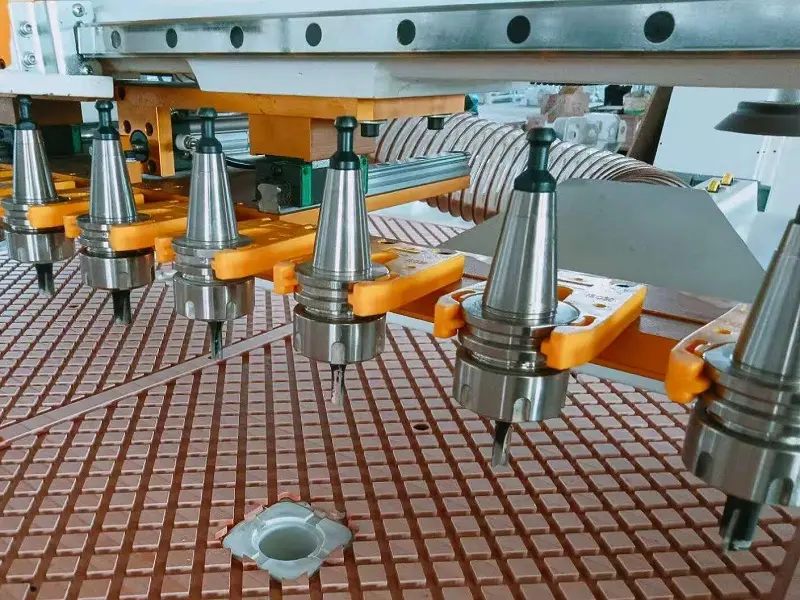

✔ 12-Tool Automatic Tool Changer – Complete cutting, drilling, and grooving in one operation
✔ High Precision ±0.03mm – Servo-driven system for stable and reliable performance
✔ Multi-Material Capability – Easily handles wood panels, acrylic, and aluminum sheets
✔ Smart Nesting Optimization – Saves materials and time, boosts production efficiency by 50%
Applications: Furniture manufacturing, cabinet processing, signage and advertising industries
Our Service
1) OEM and ODM 2) Logo, Packaging, Color Customized
3) Technical Support 4) Provide Promotion Pictures
Technical Parameters:
| Item | Specification |
|---|---|
| Machine Dimensions | Length 4.3m × Width 2.4m × Height 2.2m |
| Weight | 2700 kg |
| Effective Working Travel | X: 1300 mm / Y: 2800 mm / Z: 240 mm |
| Machine Frame | Heavy-duty structure with five-sided milling, tempered and sandblasted |
| Automatic Discharge | Auto material pushing with secondary dust removal |
| Transmission | X, Y: Helical rack and pinion; Z: Ball screw with brake |
| Linear Guide Rails | Taiwan CSK 30mm high-precision linear guide rails (precision < 0.01mm) |
| Inverter | Shanghai Zhongchen |
| Control System | Taiwan LNC |
| Servo Drive System | Leadshine full-servo system, 1.5kW × 4 motors |
| Cooling Mode | Air-cooled |
| Spindle Power | 9kW Genuine Linnanchangsheng spindle |
| Spindle Speed | 24,000 rpm/min |
| Reducer | Japan Shimpo |
| Rack and Pinion | Genuine Taiwan New Moon 1.5 helical ground and hardened rack |
| Tool Calibration | CNC automatic tool calibration |
| Cabling | Shanghai GB standard high-flex shielded copper wire (anti-interference, durable) |
| Electrical Components | Schneider (France) / Chint (China GB Standard) |
| Lubrication System | Automatic circulating lubrication with smart time setting |
| Max. Idle Speed | 85 m/min |
| Effective Working Speed | 12–21 m/min |
| Processing Accuracy | ±0.03 mm |
| Worktable Structure | Level-1 PVC vacuum table with 11-zone strong adsorption |
| Spindle Tool Capacity | 12 tools with automatic change (Optional: 16 / 24 tools upgradeable) |
| Programming Language | G-code |
| Operating Voltage | AC 380V / 5 Phase / 50Hz |
| Included Accessories | 7.5kW water-cooled vacuum pump, 4kW double-barrel dust collector, tool box, dust support bracket, several cutting tools |
More Details:

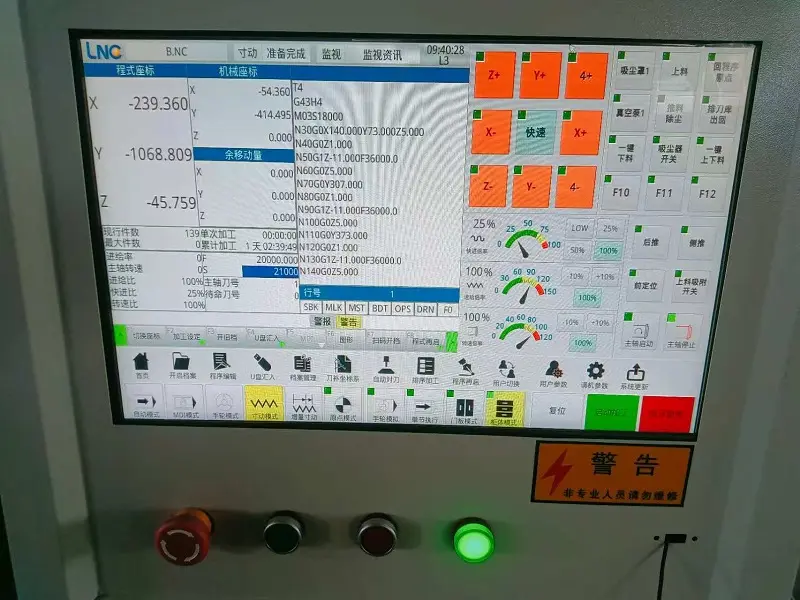

Control System
Taiwan LNC control system: user-friendly interface, fast data processing, stable operation, easy to learn and use.
Comes with free software that supports one-click automatic nesting for faster production.

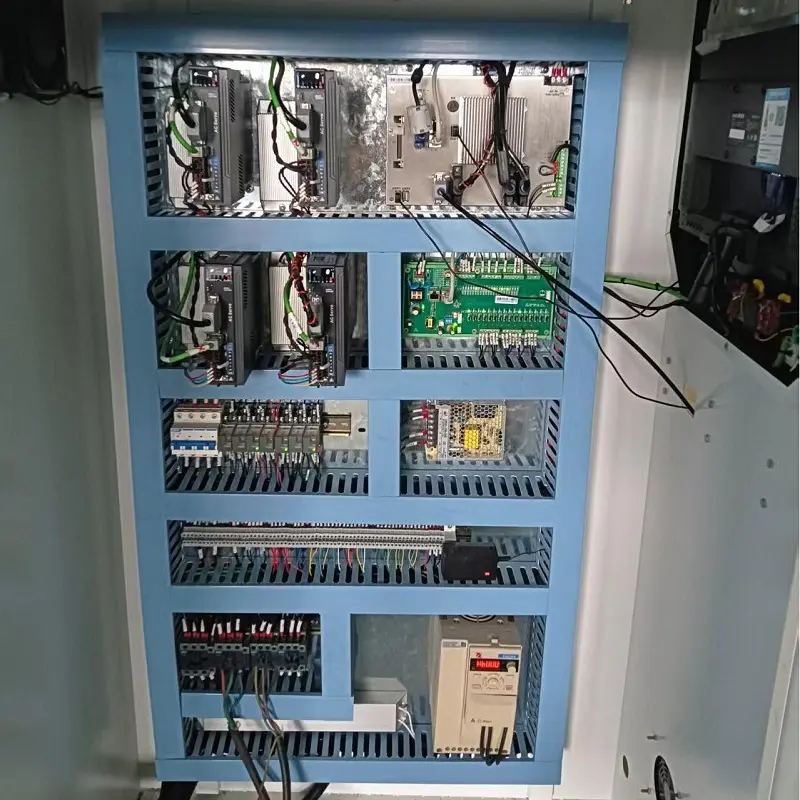

Electrical Components
Key electrical components in the control cabinet use French Schneider Electric, offering strong shock resistance,
anti-interference, moisture resistance, and long-term operational stability.

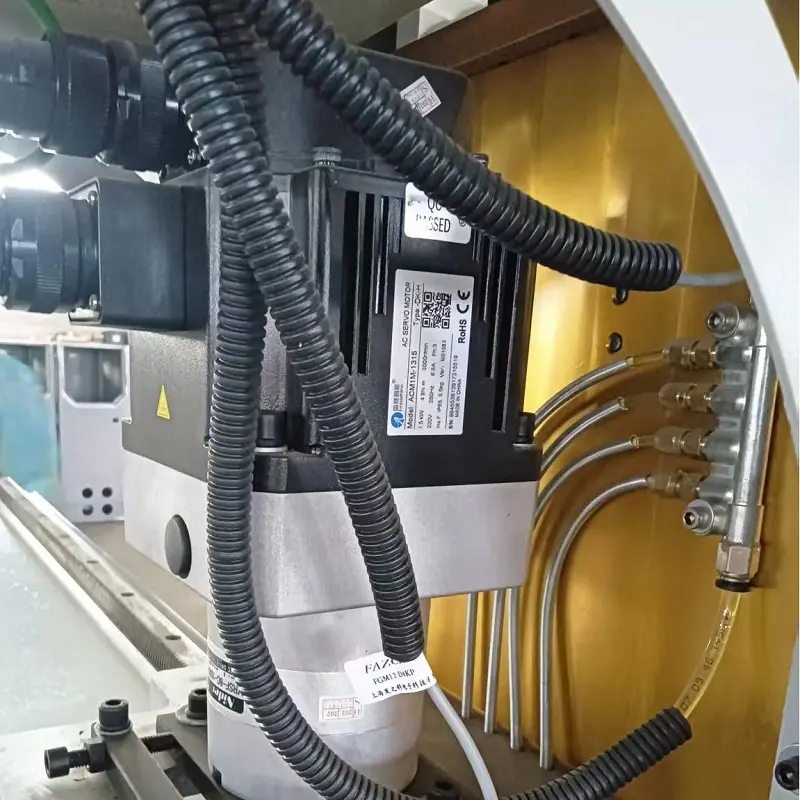

Motor / Reducer
Leadshine full-servo motor paired with Japanese Shimpo reducer provides high torque, ensuring
processing speed and machine stability.
The Z-axis uses a brake motor to prevent the spindle from falling during power failure. No need to re-zero
after reboot — machining can resume directly.

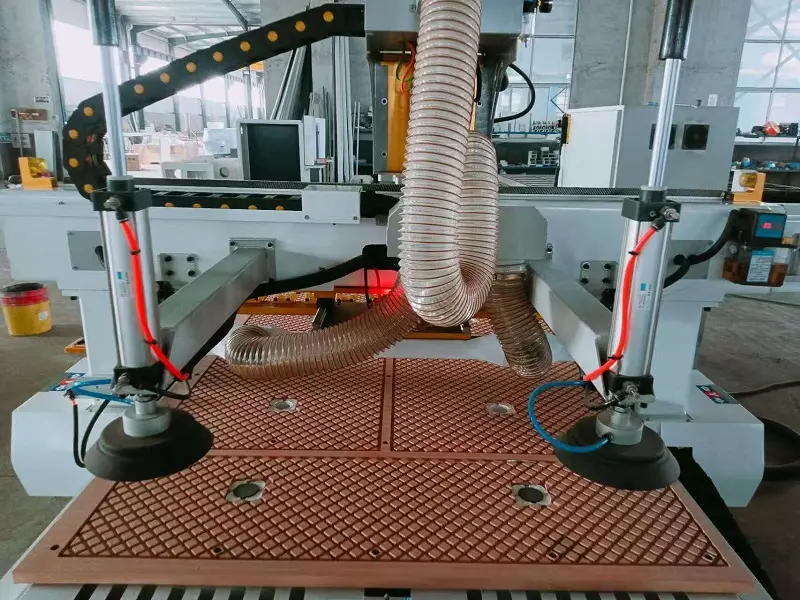

Automatic Loading Function
Smart automatic board feeding with Level-1 rubber suction cups for strong sealing and firm adsorption without
damaging the panel. The automatic loading platform adjusts lifting height intelligently.

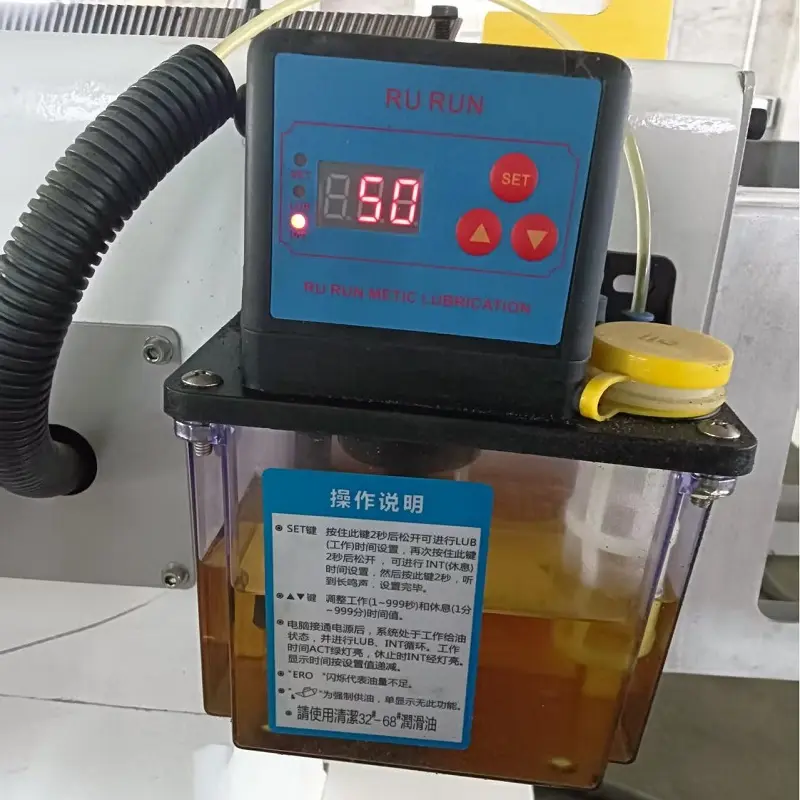

Lubrication System
Timed automatic lubrication system ensures smooth operation of sliders, ball screws, and linear guides,
significantly extending service life.
FAQ
How should I pay for my order?
A: You’ll need to pay a 30% deposit to start production. Once the machine is finished, we’ll send you pictures or videos. After you pay the remaining balance, we’ll ship the machine.What is the delivery time?
A: Standard machines usually take 10-15 days. Customized machines may take 15-30 days depending on the specifications.How are the products packaged?
A: We typically use wooden crates or plastic film for packaging. Wooden crates are for consolidated shipping, while plastic film is used for full-container shipments.Do you offer warranty services?
A: Yes, we offer a 12-month warranty on the machine. If any issues arise during normal use, we’ll provide spare parts free of charge. Plus, you’ll receive lifetime technical support and service.Do you provide installation services?
A: Yes, we offer installation assistance. For most machines, we’ll guide you through the process via online meetings or detailed video instructions. For more complex machines that require on-site setup, our technical team can visit your factory to install and ensure everything runs smoothly. Please note, travel expenses for our technicians are your responsibility.
